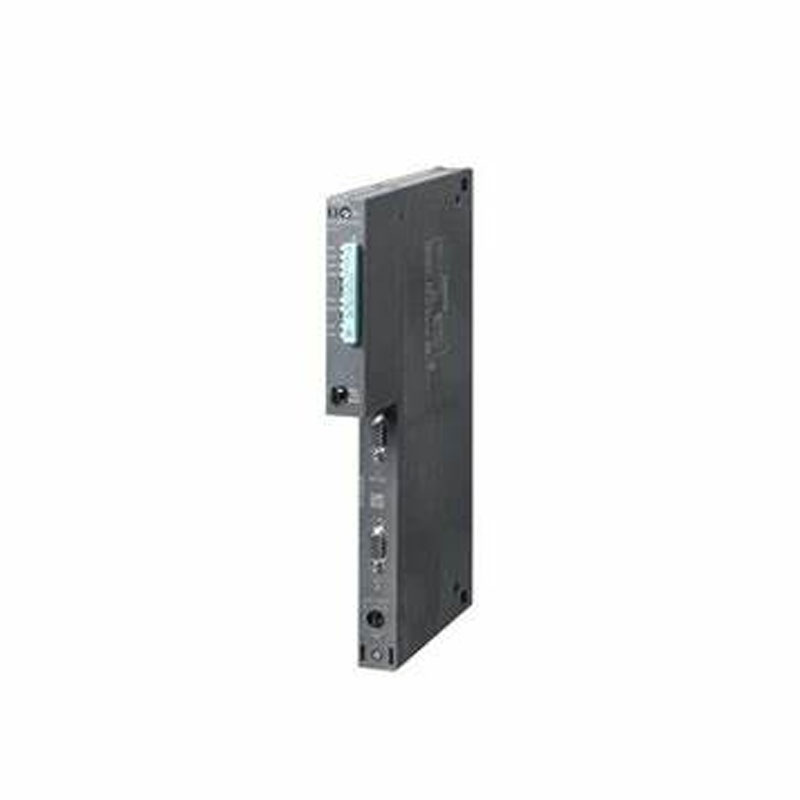

Siemens 6ES7414-1XG02-0AB0

Siemens 6ES7414-1XG02-0AB0 has flexible network connection: it can form a variety of fiber optic networks, support logically independent dual Profibus DP buses, and realize electrical interface backup or single device access to dual redundant bus system.

High-speed long-distance transmission: 6ES7414-1XG02-0AB0 uses dual optical ports to realize dual-fiber ring network redundancy function, supports fiber optic transmission rate up to 155Mb/s, and the transmission distance can reach more than 20km, meeting long-distance communication requirements.

Siemens 6ES7414-1XG02-0AB0 has self-healing protection function: when a fiber fails somewhere, the system will rebuild the network link within 10ms to ensure the normal communication of the system and realize the self-healing protection function of signal transmission.

Plug and Play: 6ES7414-1XG02-0AB0 uses the company's self-developed proprietary ring network protocol Ci-ring, which does not require settings or root nodes, and quickly completes the network's ring and de-ring functions. At the same time, this series of products is plug and play, does not require configuration, and simplifies the user's installation and debugging process.

Industrial-grade design: With IP30 protection level, 6ES7414-1XG02-0AB0 uses a corrugated aluminum reinforced housing to adapt to various industrial environments. Rich interface options: Provides 12-channel Profibus DP electrical ports and 12-channel 155M optical fiber interfaces for flexible selection, supporting redundant dual-network optical fiber ring network topology.

Status indication and alarm: Siemens 6ES7414-1XG02-0AB0 is equipped with 6 dual-color LED status indicators, optical fiber link and power failure relay output alarms, which facilitates users to monitor device status.

Parameter:

Data electrical interface: 9-pin Sub_D jack connector,
Communication rate: supports multiple communication rates, including 9.6kBit/s, 19.2 kBit/s, 45.45kBit/s, 93.75kBit/s, 187.5kBit/s, 500kBit/s, 1.5MBit/s, 6MBit/s and 12MBit/s, which can be set by automatic identification or DIP switch.
Signal delay: electrical port signal delay ≤11Bit, optical port signal delay ≤1.6us/node.
Lightning protection and overcurrent protection: Siemens 6ES7414-1XG02-0AB0 has 4000V lightning protection, 1.5A overcurrent protection and 600W surge protection.

Fiber Parameters:

Application scenarios:

Siemens 6ES7414-1XG02-0AB0 processor is widely used in industrial automation, process control, manufacturing and other fields due to its excellent performance and stability, especially in industrial control systems that require high-speed long-distance communication, high reliability and self-healing protection functions.
