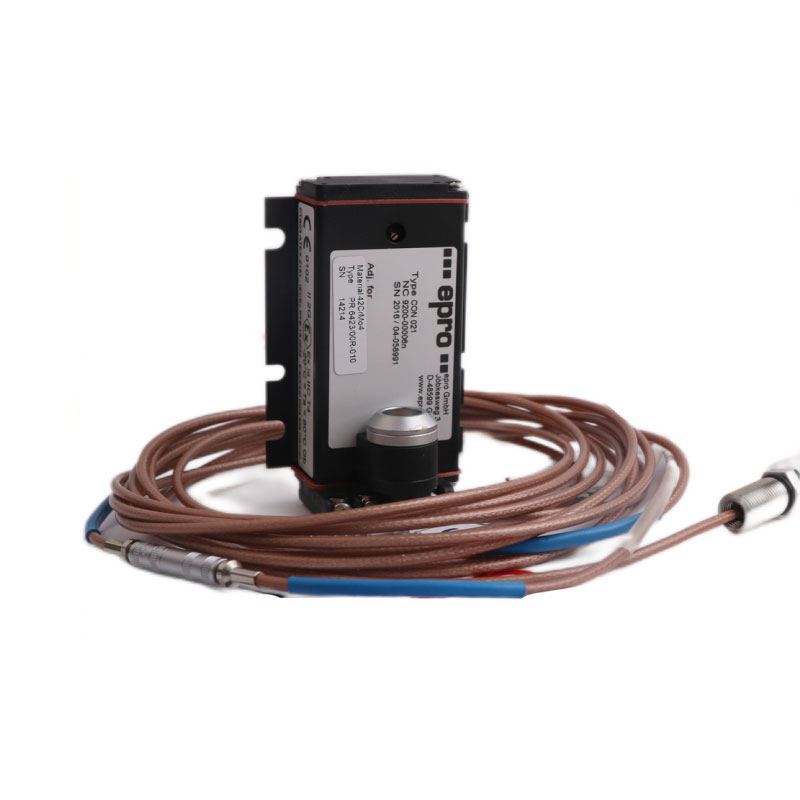

EPRO PR6423/010-010 CON021 is a high-performance vibration sensor, which consists of a magnetically sensitive semiconductor sensor element and a sensor electronics with a threshold switch. It uses advanced magnetically sensitive semiconductor sensor elements to ensure the accuracy of the measurement results. It adopts a compact structure design, which is convenient for installation on various mechanical equipment. It is suitable for static and dynamic vibration measurement to meet the needs of different application scenarios.
Model: EPRO PR6423/010-010 CON021
Sensitivity/Linearity: 8 V/mm (203.2 mV/mil)
Air gap (center): Approximately 1.5 mm (0.06 in) nominal
Long term drift: Less than 0.3%.
Static: ±1 mm (0.040 in)
Dynamic: 0 to 500 μm (0 to 0.020 in)
Target/Surface Material: Ferromagnetic steel (42 Cr Mo4 standard)
Maximum surface speed: 2500 m/s (98425 ips)
Shaft diameter: ≥25 mm.
Weight: 100 g
What fields is EPRO PR6423/010-010 CON021 mainly used in?
Not limited to turbomachinery, fans, compressors, gearboxes, pumps, coal mills and other equipment. It can provide accurate vibration monitoring data for the operating status of these equipment, thereby helping users to detect potential problems in a timely manner and ensure the stable operation of the equipment.
