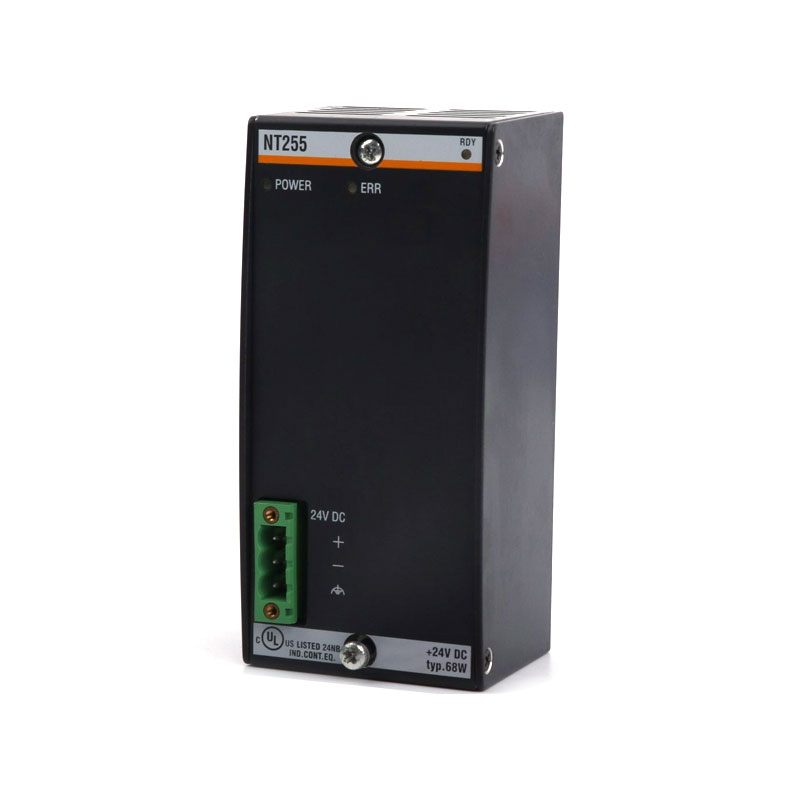

Bachmann NT255

The integrated heat dissipation design in the Bachmann NT255 circuit board effectively prevents local overheating, thereby extending the service life of the components. The rugged design enables it to withstand various harsh industrial environments, including shock and vibration. The NT255 has sufficient power reserve (55W peak power) for temporary overload, and can withstand loads exceeding the rated power for a short time, ensuring the reliability of the system.

The built-in electronic reverse polarity protection function of the Bachmann NT255 can prevent damage caused by incorrect polarity. The monitoring of the Bachmann NT255 power supply voltage and output voltage, as well as the sending of power failure messages, improve the safety of the system.

Basic Parameters

Model: NT255
Origin: Germany
Input voltage range: 18 to 34VDC
Output power: 45W
Power consumption: 68W
Fuse: SMD line fuse 7A device failure
Output voltage/output current: +5V/6A (peak 8A), ±15V/0.5A
Galvanic isolation: 500V
Operating temperature: -30 to +60°C
Storage temperature: -40 to +85°C
Relative humidity operation: 5 to 95%, non-condensing

Product Application

Bachmann NT255 power module is highly favored in the industrial world for its excellent performance and wide range of applications. In industrial automation control systems, NT255 provides stable and reliable power for CPU and backplane modules. Its rugged design and efficient energy conversion capabilities enable it to operate stably in various harsh industrial environments.

Bachmann NT255 is also widely used in communication equipment to provide stable power for various electronic components and sensors. Its wide input voltage range and multiple output configurations enable it to adapt to the power requirements of different communication devices.

In rail transit systems, Bachmann NT255 provides power support for signal processing and control systems. Its reliability and stability are essential to ensure the safe operation of rail transit systems.
