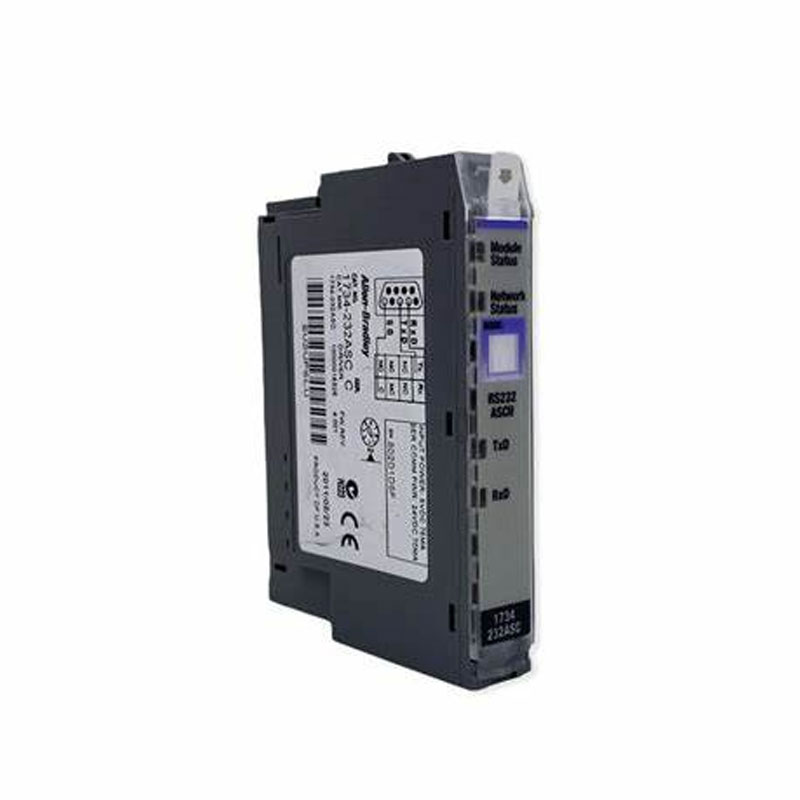

Allen Bradley 1734-232ASC

Allen Bradley 1734-232ASC modules use high-quality electronic components and advanced production processes to ensure the stability and durability of the modules. These components have been strictly screened and tested to be able to operate stably for a long time in harsh industrial environments. Allen Bradley 1734-232ASC seamlessly integrates with POINT I/O systems, making it easy for users to quickly build automation systems.

Allen Bradley 1734-232ASC supports multiple configuration methods to meet different application needs of users. Allen Bradley 1734-232ASC provides complete fault diagnosis and status indication functions to facilitate user maintenance and troubleshooting.

Allen Bradley 1734-232ASC has an RS-232 serial ASCII interface channel, supporting single-channel, full-duplex communication with a maximum speed of 38.4 Kbps. This interface design of Allen Bradley 1734-232ASC not only improves the efficiency and stability of data transmission, but also enhances the anti-interference ability of Allen Bradley 1734-232ASC, ensuring the reliability of data transmission in complex industrial environments.

Basic parameters

Manufacturer: Allen-Bradley (Rockwell Automation)
Product series: 1734 series distributed I/O module
Product model: 1734-232ASC
Description: POINT ASCII INTERFACE, with RS-232 serial ASCII interface channel
Input/output: 1 serial interface channel (RS-232)
Maximum data transmission speed: 38.4 Kbps (kilobits per second)
Data communication format: ASCII
Maximum amount of data transmitted: 128 bytes
PointBus current: 75mA
External DC power supply: 10-28V DC, maximum 1.0A
Power consumption: 0.75W @ 28.8V DC

The Allen Bradley 1734-232ASC module is mainly used in industrial automation systems as a bridge to connect devices with serial interface outputs (such as barcode readers) to networks supported by POINT I/O systems. It allows these devices to transmit ASCII data on the POINT I/O network to achieve serial communication between devices.

The maximum communication speed of the Allen Bradley 1734-232ASC module is 38.4 Kbps (kilobits per second), which is sufficient to meet the data transmission needs in most industrial automation systems. In terms of communication distance, the RS-232 interface generally supports a maximum communication distance of 15 meters (using a standard communication cable). If a longer communication distance is required, consider using a signal amplifier or converter to extend the communication range.
